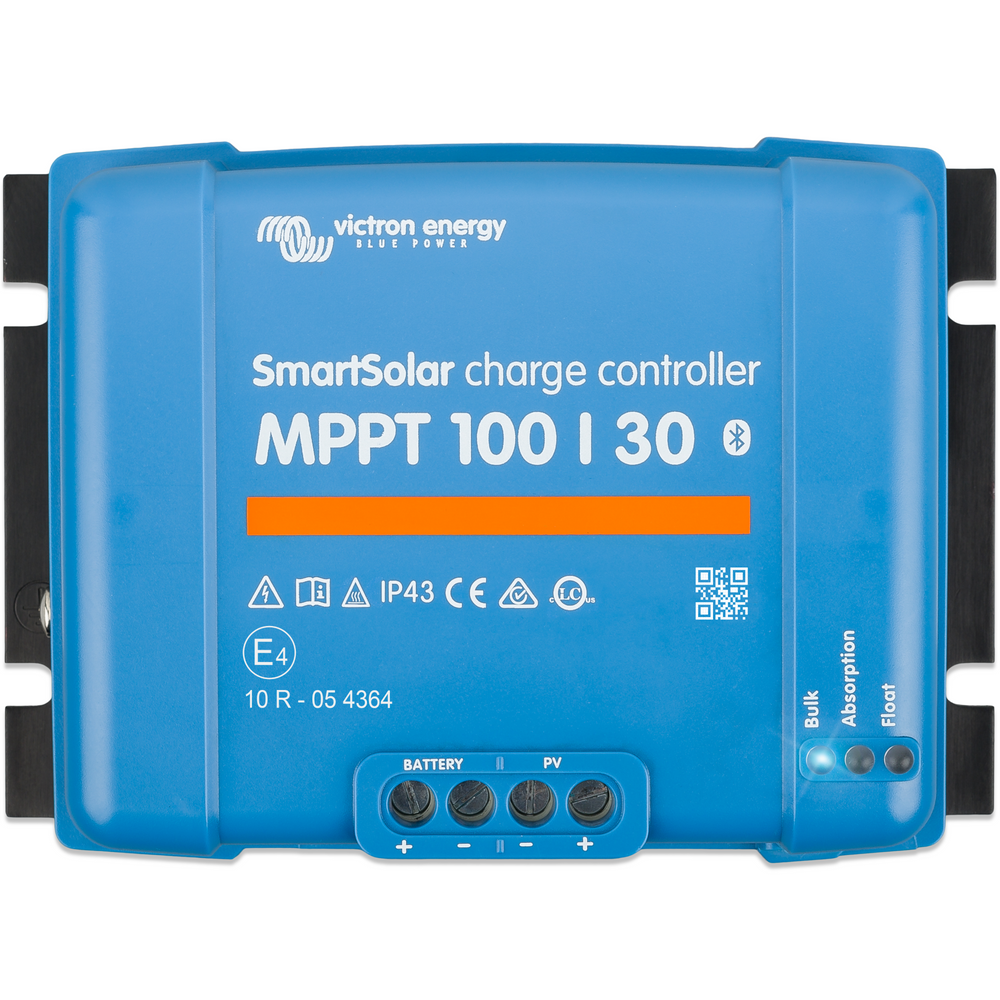

The Victron Energy SmartSolar MPPT 100/30 is an advanced solar charge controller that uses the Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar panels for your system:
Key Features:
- Maximum Power Point Tracking (MPPT): This technology ensures you get the most power possible from your solar panels at any point in time, significantly increasing the efficiency of your solar system. The intellgent alogrithm contonoisuly tracks and adjust to ensure optimal performance, even in challenging weather conditions.
- High Charging Capacity: The 100/30 model supports a maximum PV open circuit voltage of 100V and a maximum output current of 30A. This makes it suitable for a wide range of solar installations.
- Smart Networking and Monitoring: With its built-in Bluetooth connectivity, the SmartSolar MPPT 100/30 can be paired with your smartphone or other devices. Through Victron's dedicated mobile app (Victron Connect), you can monitor the status of your solar system, track power generation, and adjust settings as required. It also includes a Ve.Direct cable port for any hardwired connections.
- Intelligent Battery Life Management: The controller uses a multi-stage adaptive charge algorithm to optimize battery health and longevity. It also includes Battery Temperature Sensor (BTS) functionality to prevent overheating and ensure safe operation. It supports various battery types including, open-lead acid, absorberd glass mat, gel, lithium-ion, lithium-iron phospate (LiFePO4) batteries.
- Auto Detect Battery Voltage: The SmartSolar MPPT 100/30 automatically detects system battery voltage, making setup easier and safer.
- Extensive Electronic Protection: The device includes protection against overheating, over-discharging, overcharging, reverse polarity, and PV short circuit or PV reverse polarity. This ensures reliable operation and longevity of the controller.
- Robust and Durable: The SmartSolar MPPT 100/30 is built to last and withstand harsh environments, promising long service life.
Technical Specifications:
- Battery Voltage: 12/24V Auto Select
- Rated Charge Current: 30A
- Maximum PV Power: 12V system - 290W, 24V system - 580W, 48V system - 1160W
- Max PV Short Circuit Current: 30A
- Max PV Open Circuit Voltage: 100V
- Temperature Range: -22°F to 140°F
- Dimensions: 5.12 x 7.32 x 2.76 in
- Weight: 2.87 Lbs
- Self-consumption: Less than 10mA
- Protection Class: IP43 (electronic components), IP22 (connection area)
