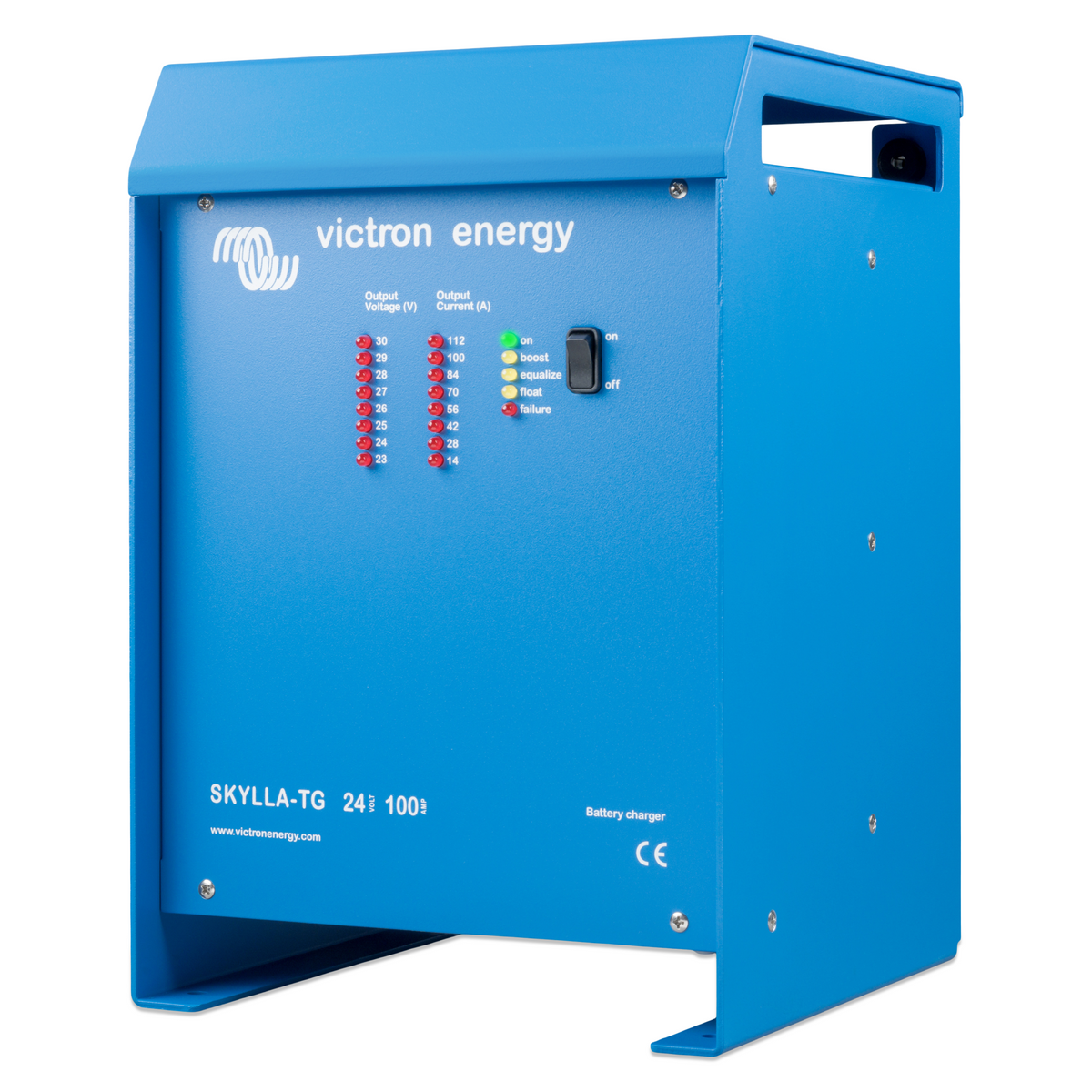

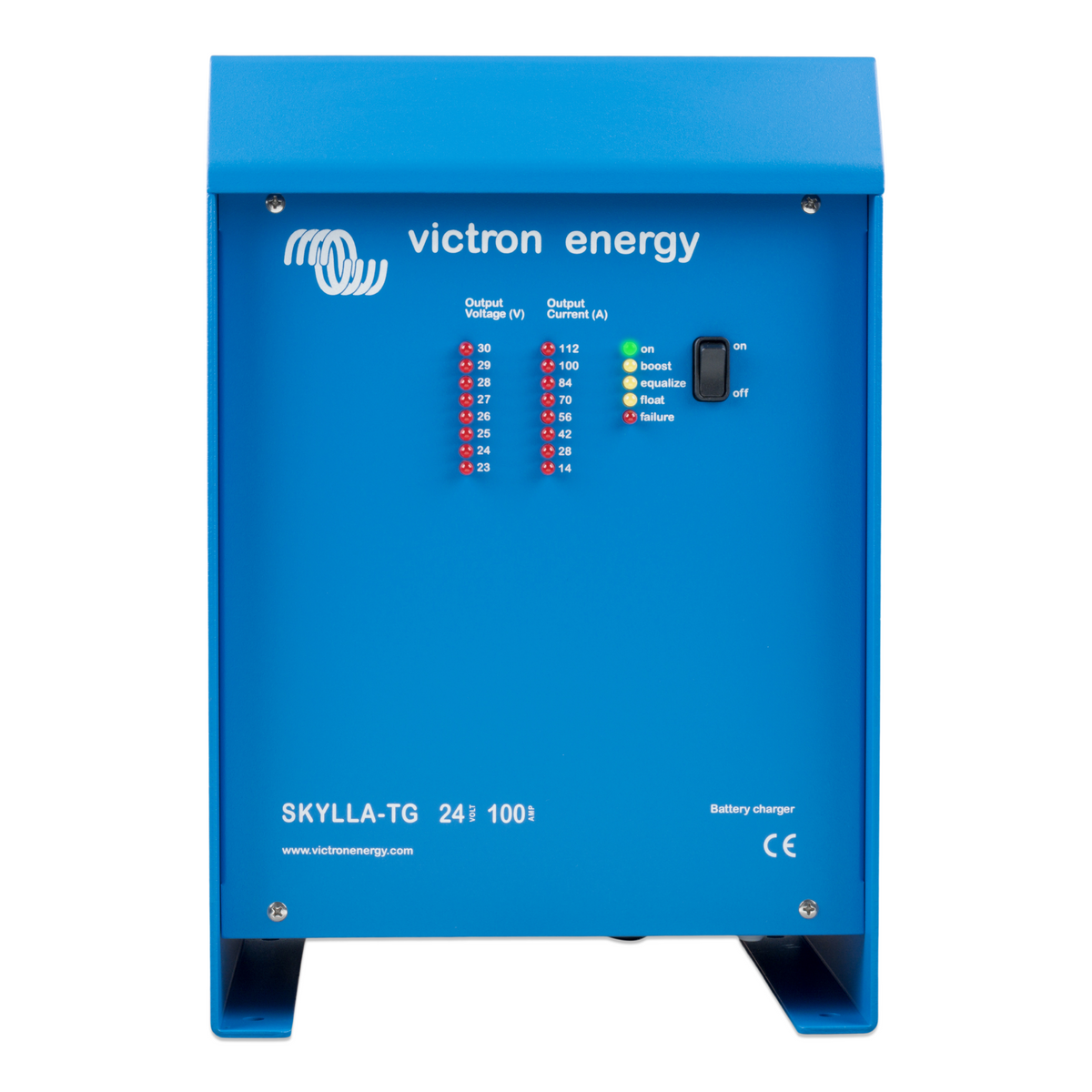

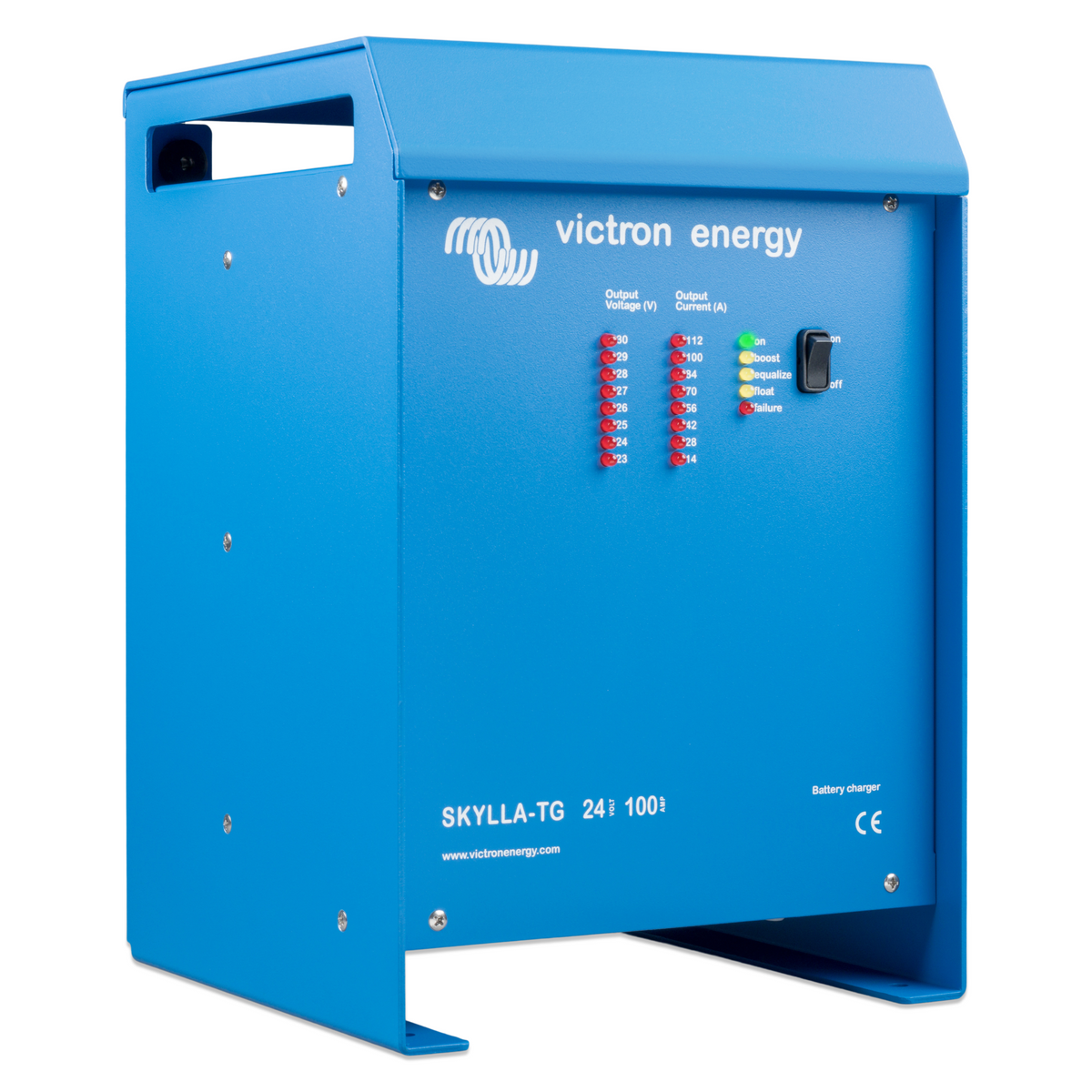

Skylla-TG 24/100(1+1) GL 120-240V

The Victron Energy Skylla-TG 24/100(1+1) GL is a professional 24V battery charger designed for large marine, commercial, and industrial battery systems. It provides a 100A main charging output plus a separate 4A output for maintaining an engine-starting battery.

Its universal 90–265V AC input operates with both 120V and 240V power sources without manual adjustment. Microprocessor-controlled three-stage charging, battery-voltage sensing, and temperature compensation help provide accurate and dependable charging under changing operating conditions.

Key Features:

• Powerful 100A Main Output: Provides high-capacity charging for large 24V battery banks.
• Auxiliary Starter-Battery Output: Includes a separate 4A output for maintaining an engine-starting battery.
• Universal 120V and 240V Operation: Automatically accepts 90–265V AC at 45–65Hz without manual input selection.
• Automatic Three-Stage Charging: Uses an IUoUo charging cycle with bulk, absorption, and float stages to charge batteries efficiently and maintain them during extended connection.
• Adjustable Charging Voltage: The charging voltage can be adjusted to suit different sealed and flooded lead-acid battery systems.
• Battery-Voltage Sensing: Measures voltage directly at the battery terminals to compensate for voltage loss caused by cable resistance.
• Temperature-Compensated Charging: A battery-temperature sensor adjusts the charging voltage according to battery temperature.
• Power-Supply Function: Can also operate as a stable 24V DC power supply when required.
• Remote Alarm Connection: Potential-free alarm contacts allow the charger to connect to an external monitoring or alarm system.
• GL Approved: Approved to Germanischer Lloyd environmental category C and EMC 1 for protected marine installations. GL certification applies when operating from a 185–265V AC supply.
• Built-In Protection: Includes protection against output short circuits, reversed battery polarity, excessive battery voltage, and excessive temperature.

The Skylla-TG 24/100(1+1) GL is a dependable charging solution for large vessels, commercial vehicles, generators, industrial equipment, and backup power systems that require high-output 24V battery charging and maintenance of a separate starting battery.

Technical Specifications:
