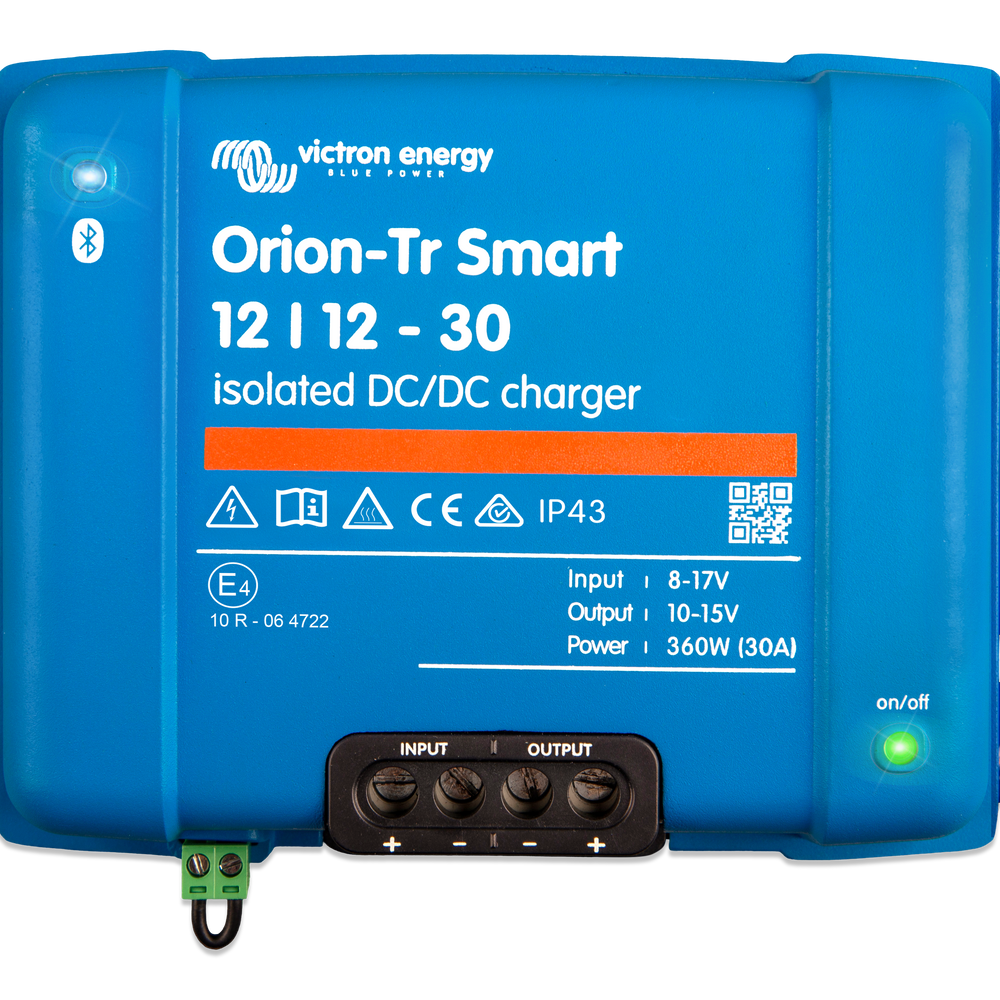

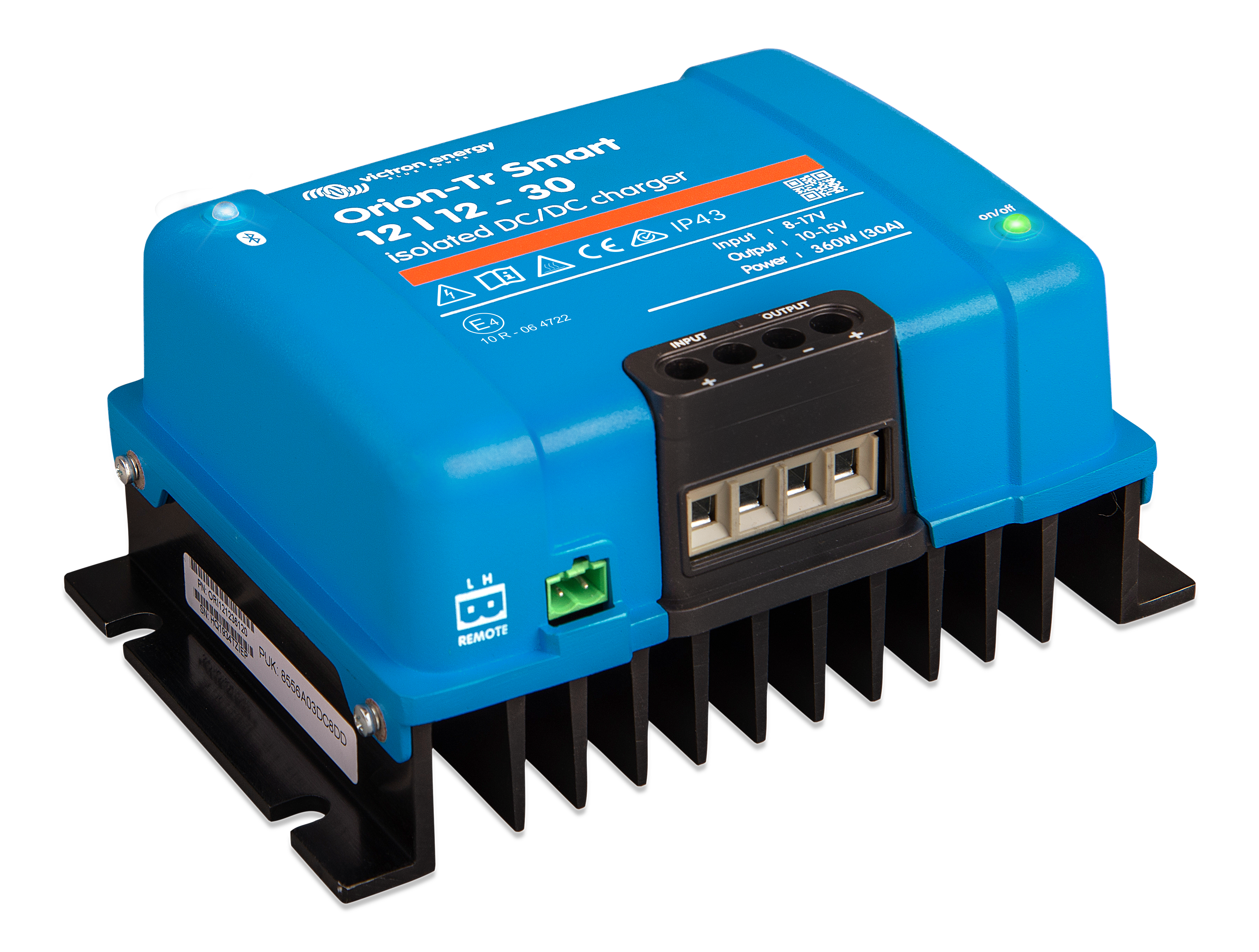

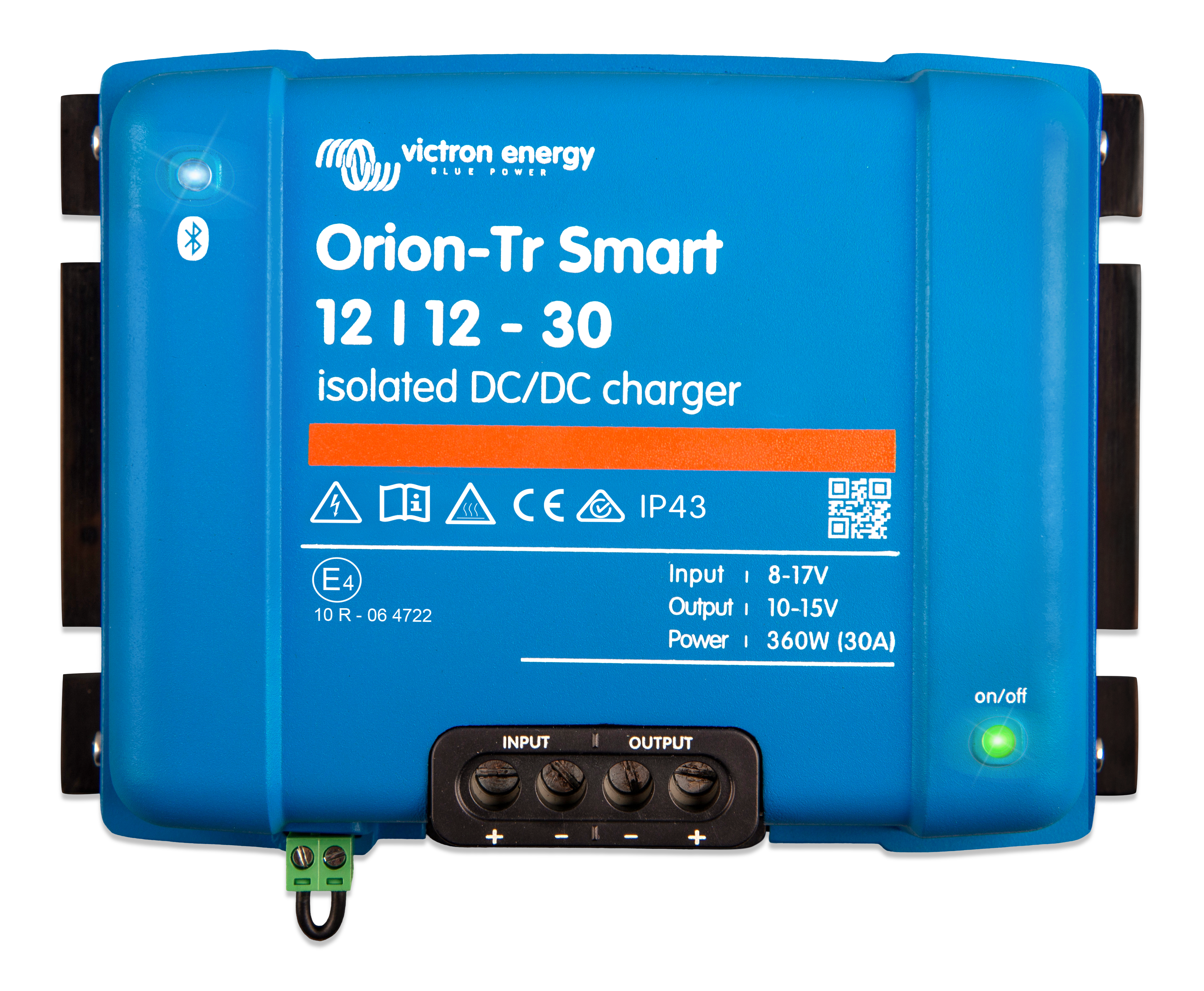

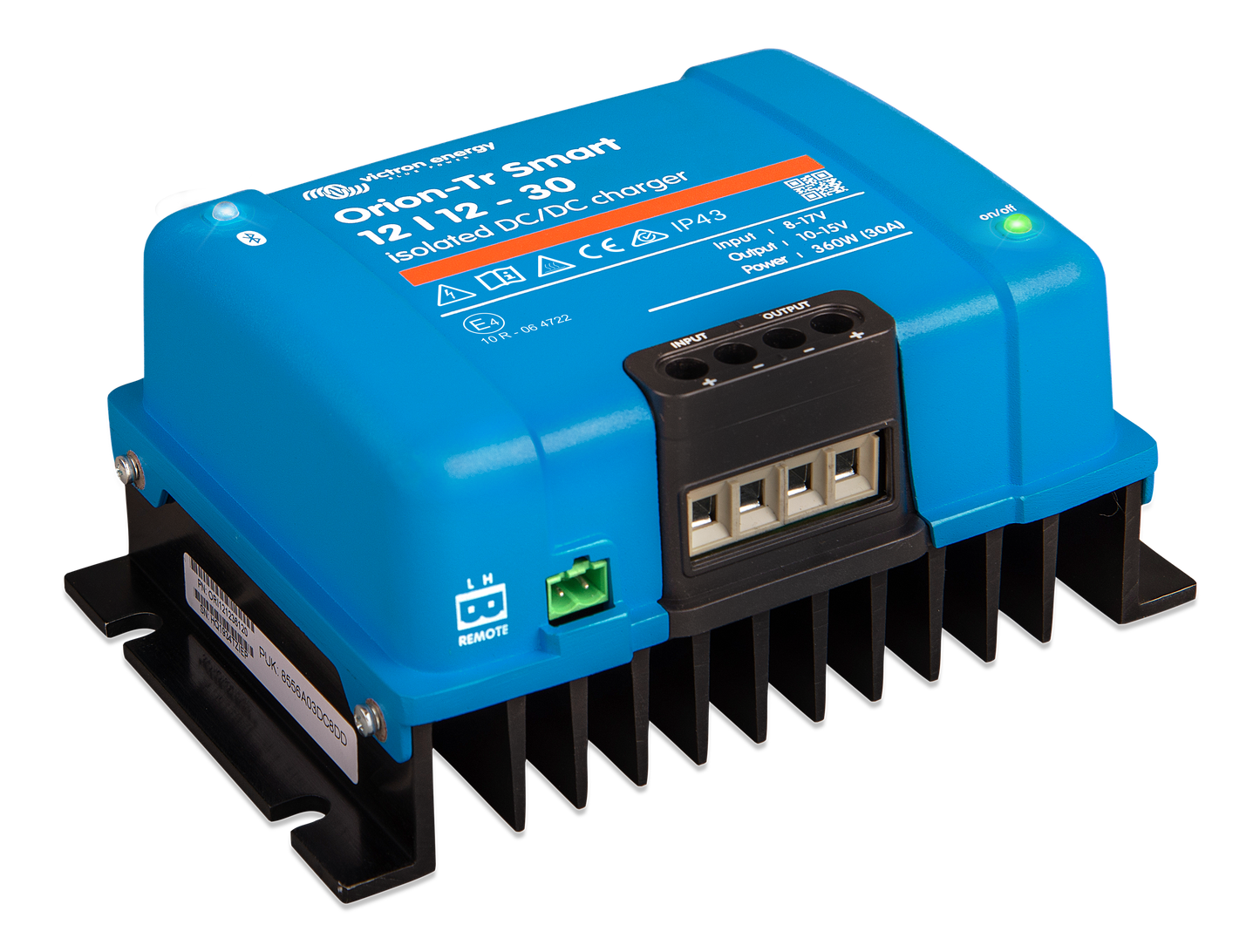

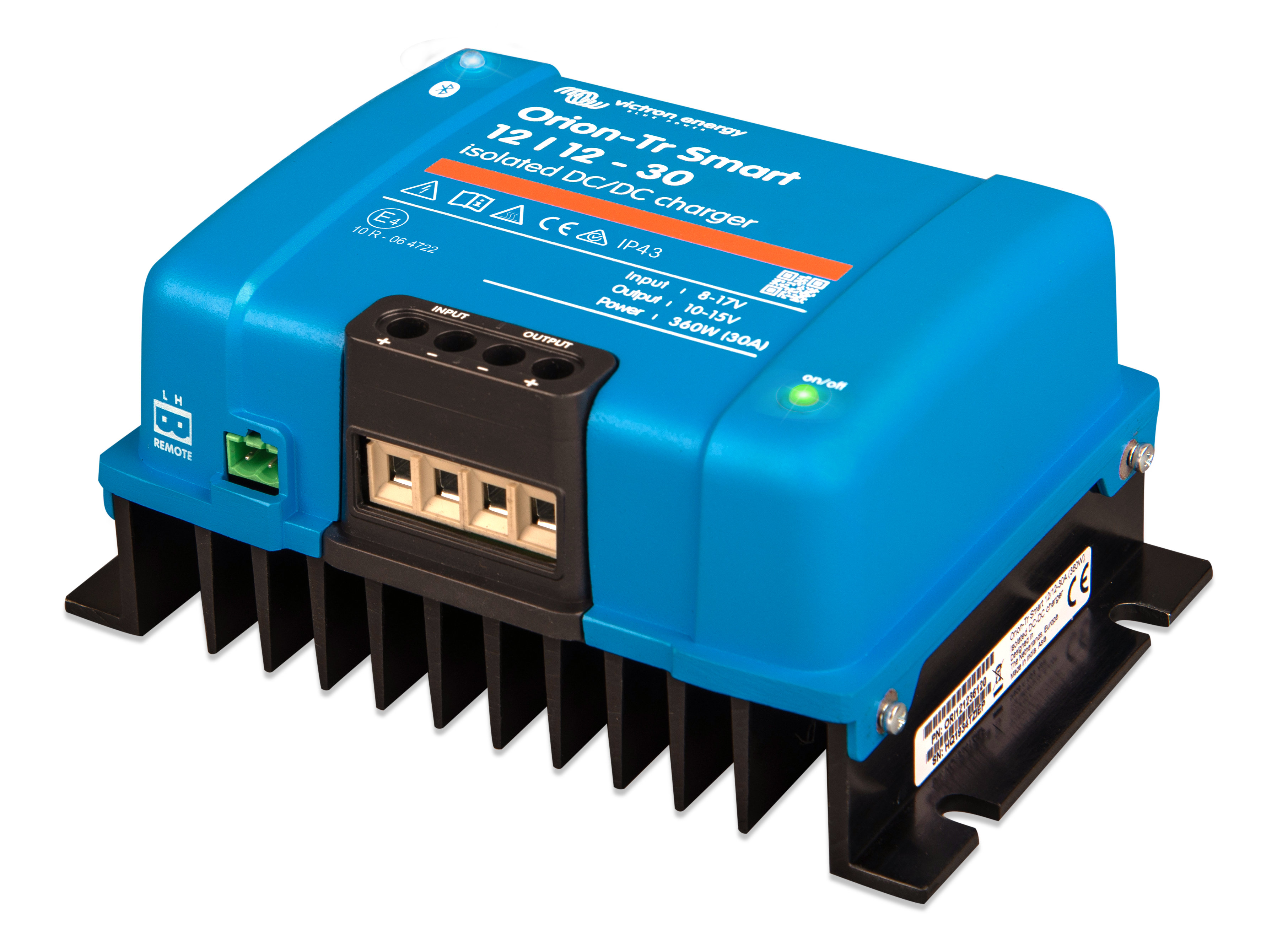

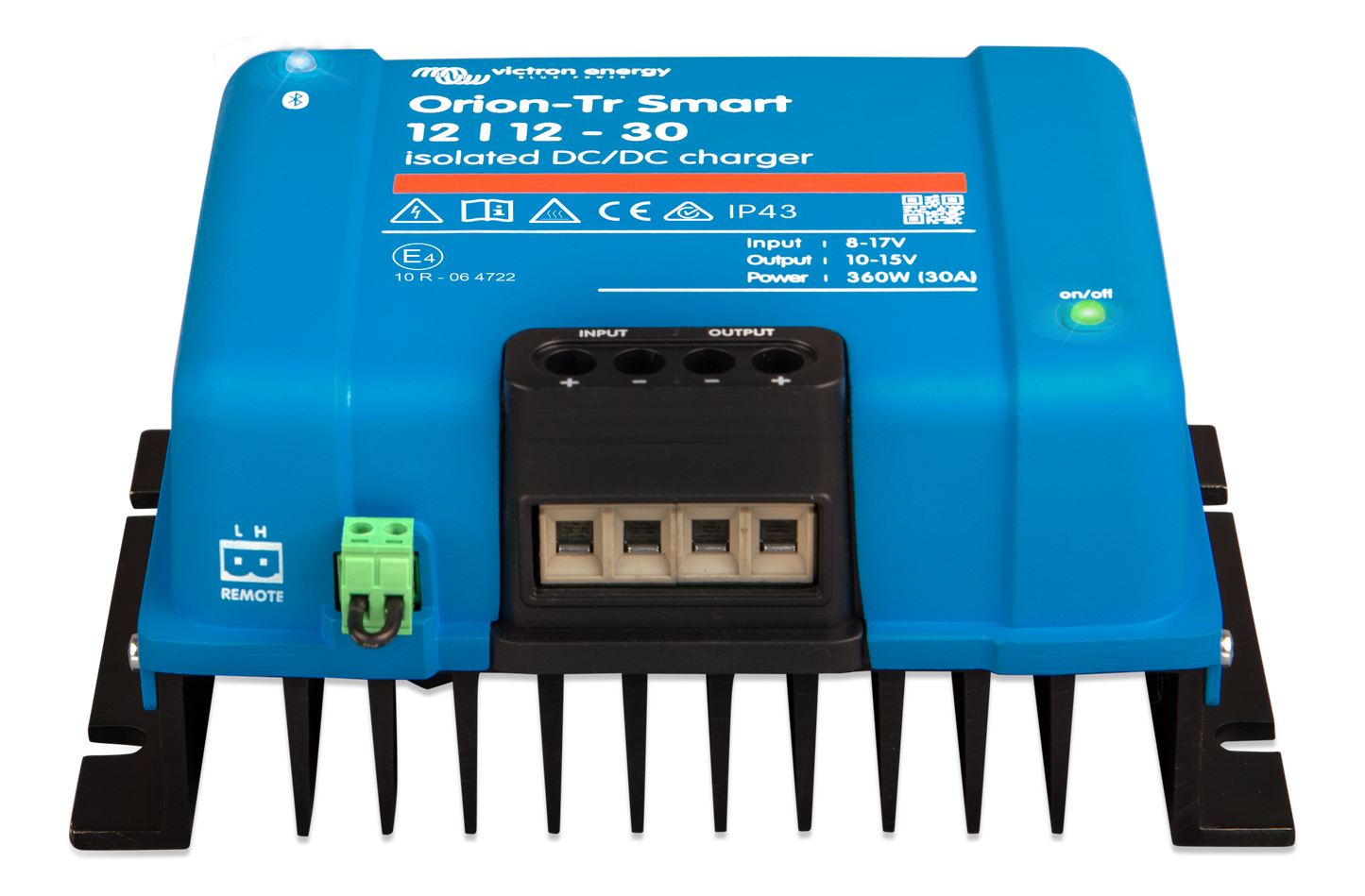

Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger
ORI121236120
Regular price
$243.95
The Victron Energy Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC Charger is designed to charge a 12V service battery from a 12V starter-battery and alternator system. It provides adaptive three-stage charging, galvanic isolation, built-in Bluetooth, and automatic engine-running detection for professional vehicle and marine installations.
The isolated design electrically separates the input, output, and enclosure, allowing the starter-battery and service-battery circuits to use separate chassis grounds. Charging settings and operating information can be accessed wirelessly through the VictronConnect app.
Key Features:
- 12V-to-12V battery charging: Charges a 12V service battery from a compatible 12V starter-battery and alternator system.
- 30A continuous charging output: Delivers 30A and 360W continuously at an ambient temperature of 104°F.
- Adaptive three-stage charging: Uses bulk, absorption, and float stages to provide controlled charging for compatible batteries.
- Lead-acid and lithium compatibility: Charging parameters can be configured for compatible battery chemistries through VictronConnect.
- Built-in Bluetooth: Allows wireless configuration, monitoring, and firmware updates using the VictronConnect app.
- Galvanic isolation: Provides 200V DC isolation between the input, output, and enclosure, allowing separate electrical grounds on each side.
- Automatic engine-running detection: Helps prevent the charger from drawing power from the starter battery while the engine is off.
- Smart-alternator support: Configurable engine-detection settings help integrate the charger with conventional and variable-voltage alternators.
- Remote on/off: Supports control through a low-power switch, relay, or compatible external engine-running signal.
- Power-supply mode: Can provide an adjustable, regulated DC output instead of operating as a battery charger.
- Adjustable output: Output voltage can be configured from 10V to 15V DC in power-supply mode.
- Parallel operation: Multiple compatible units can be connected in parallel to increase the available charging current.
- High-temperature protection: Reduces output when the ambient temperature rises above the full-output range.
- Screw-terminal connections: Accepts cables up to AWG 6 for secure installation.
The Orion-Tr Smart 12/12-30A is well suited for motorhomes, work vehicles, boats, emergency vehicles, and other dual-battery systems that need controlled charging between two 12V electrical systems.
Important: This charger requires proper cable and fuse sizing on both the input and output sides. The Orion-Tr Smart does not have a VE.Direct port, and VictronConnect does not display its input or output current. Bluetooth is used for configuration, status information, and firmware updates.
Technical Specifications:
| Manufacturer | Victron Energy |
| Model | Orion-Tr Smart 12/12-30A (360W) Isolated |
| Manufacturer Part Number | ORI121236120 |
| Charger Type | Isolated, programmable DC-DC battery charger |
| Nominal Input Voltage | 12V DC |
| Input Voltage Range | 8–17V DC |
| Undervoltage Shutdown | 7V DC |
| Undervoltage Restart | 7.5V DC |
| Nominal Output Voltage | 12.2V DC |
| Adjustable Output Range | 10–15V DC |
| Output Voltage Tolerance | ±0.2V |
| Output Noise | 2mV RMS |
| Continuous Output Current at 104°F | 30A at nominal output voltage |
| Maximum Output Current for 10 Seconds | 40A at nominal output voltage minus 20% |
| Short-Circuit Output Current | 60A |
| Continuous Output Power at 77°F | 430W |
| Continuous Output Power at 104°F | 360W |
| Efficiency | 87% |
| No-Load Input Current | Less than 80mA |
| Standby Current | Less than 1mA |
| Charging Algorithm | Adaptive three-stage: bulk, absorption and float |
| Battery Compatibility | Compatible lead-acid and lithium batteries |
| Galvanic Isolation | 200V DC between input, output, and enclosure |
| Engine-Running Detection | Built in and configurable |
| Remote On/Off | Yes |
| Bluetooth | Built in; compatible with VictronConnect |
| VE.Direct Port | No |
| Power-Supply Mode | Yes |
| Parallel Operation | Supported |
| Operating Temperature Range | -4°F to 131°F |
| Full Rated Output | Up to 104°F |
| Maximum Humidity | 95%, non-condensing |
| DC Connections | Screw terminals |
| Maximum Cable Size | AWG 6 (16mm²) |
| Dimensions (H × W × D) | 5.1 × 7.3 × 3.2 in (130 × 186 × 80 mm) |
| Weight | 4 lb (1.8 kg) |
