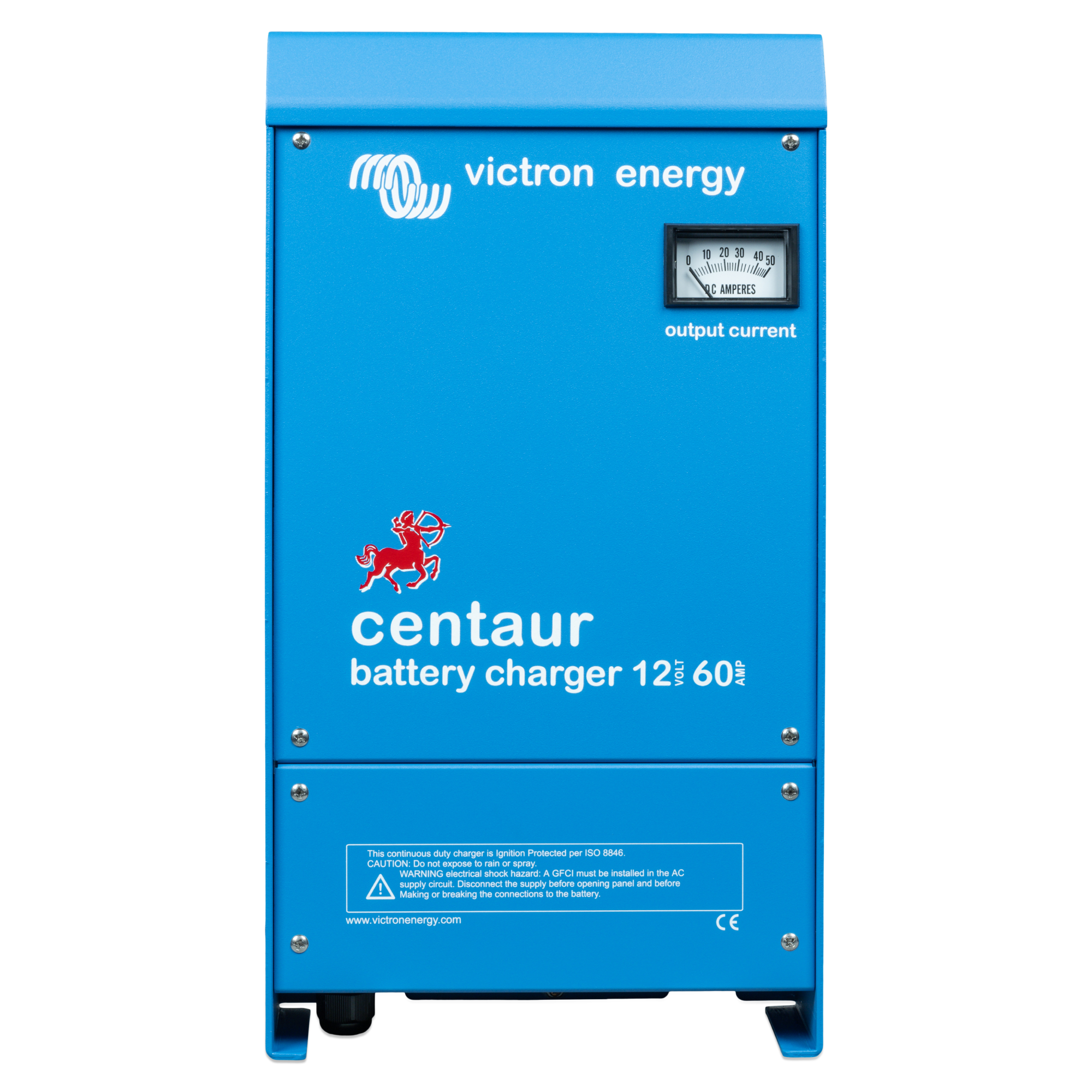

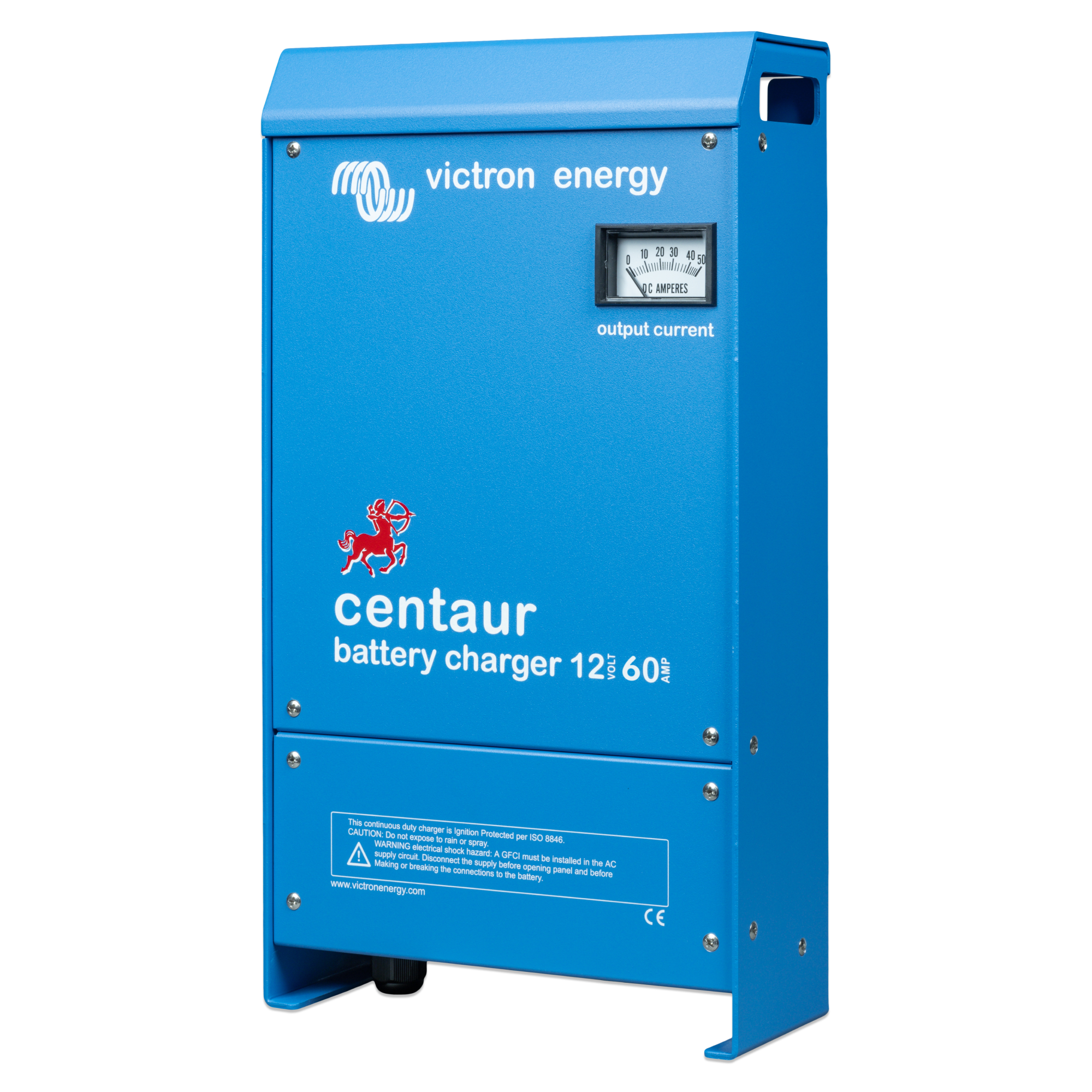

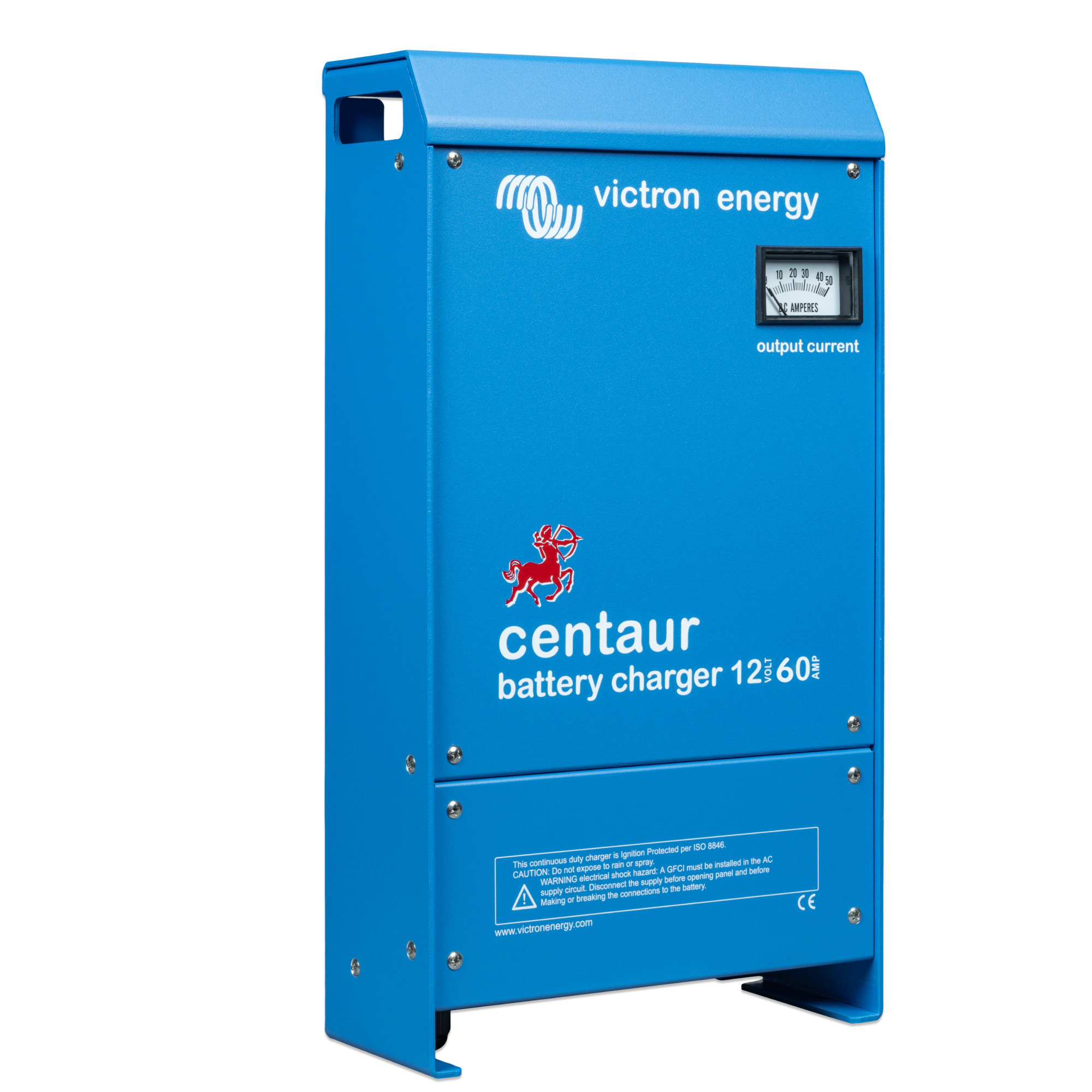

Centaur Charger 12/60(3) 120-240V

The Victron Energy Centaur Charger 12/60(3) is a heavy-duty 12V battery charger built for marine, RV, commercial, and backup power systems. It delivers up to 60A of charging current and includes three isolated outputs, allowing it to charge multiple battery banks from a single charger.

Its universal 90–265V AC input operates with both 120V and 240V power sources without manual adjustment. This makes the Centaur a practical option for vessels, vehicles, and equipment that may connect to different shore power or generator systems.

Key Features:

• Powerful 60A Output: Provides dependable charging for medium and large 12V battery banks.
• Three Isolated Charging Outputs: Charge up to three battery banks simultaneously. The charger provides a total output of 60A, automatically shared according to the needs of the connected batteries.
• Universal 120V and 240V Operation: Automatically accepts 90–265V AC at 45–65Hz with no manual input selection required.
• Automatic Three-Stage Charging: Uses bulk, absorption, and float stages to recharge batteries efficiently and maintain them during extended connection.
• Selectable Battery Profiles: DIP switches provide charging settings for flooded lead-acid, Gel, and AGM batteries.
• Temperature-Compensated Charging: An internal temperature sensor adjusts the charging voltage according to operating conditions.
• Designed for Demanding Installations: The aluminum enclosure, stainless-steel hardware, protected circuit boards, and ignition-protected construction provide dependable performance in marine and industrial environments.
• Built-In Protection: Includes output short-circuit and overtemperature protection, plus a temperature- and current-controlled cooling fan.

The Centaur Charger 12/60(3) is a dependable solution for boats, motorhomes, service vehicles, generators, and backup power systems that need to maintain multiple 12V battery banks.

Technical Specifications:
