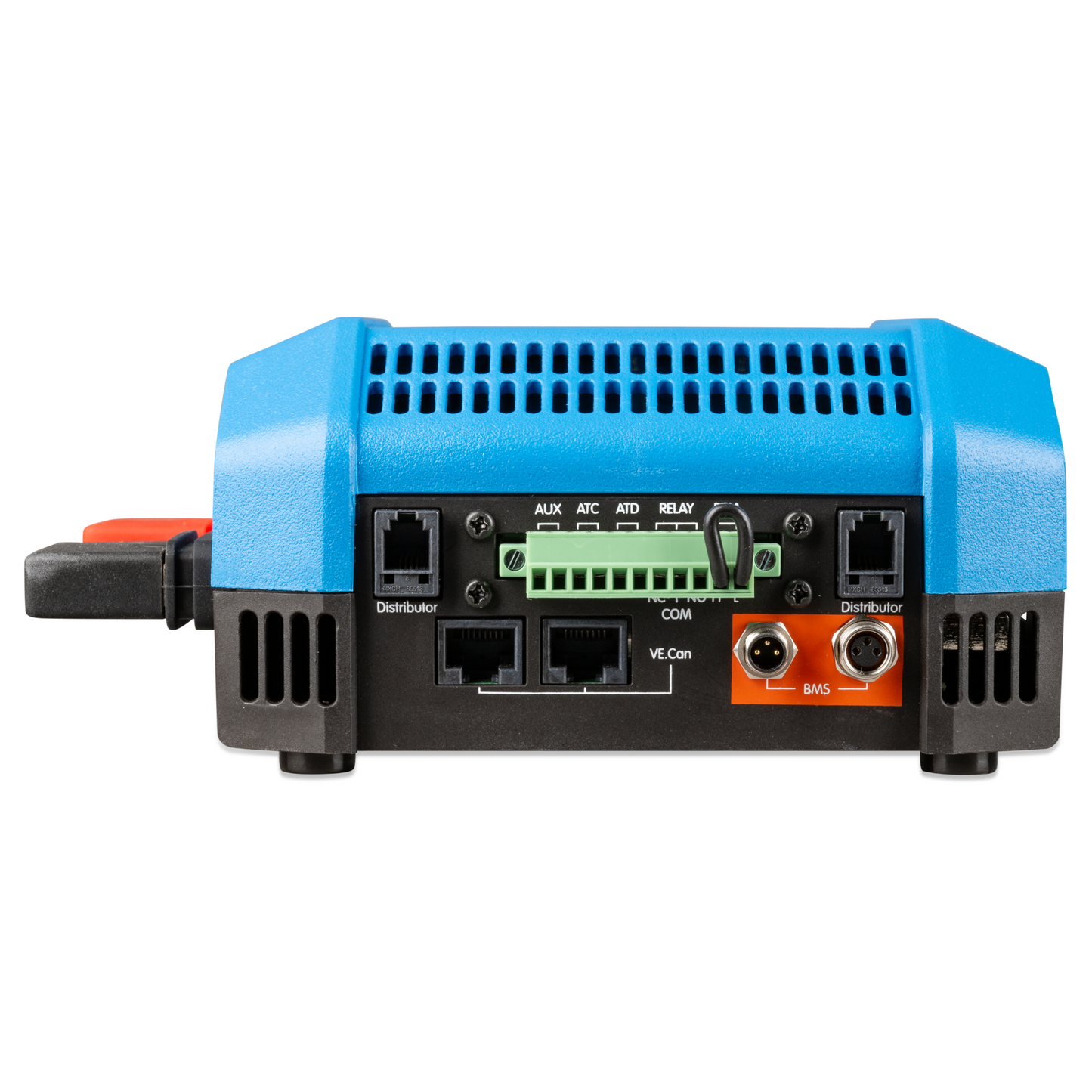

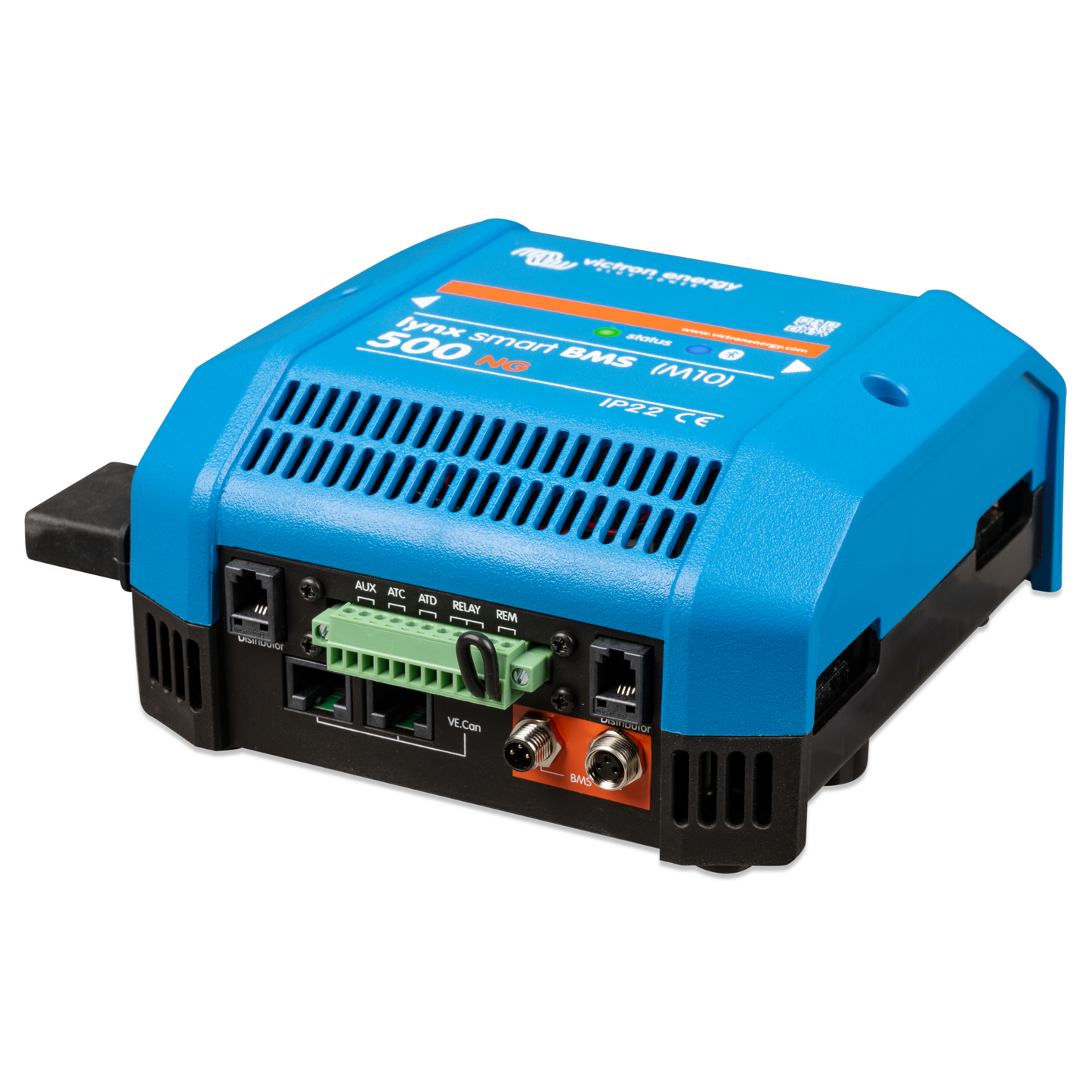

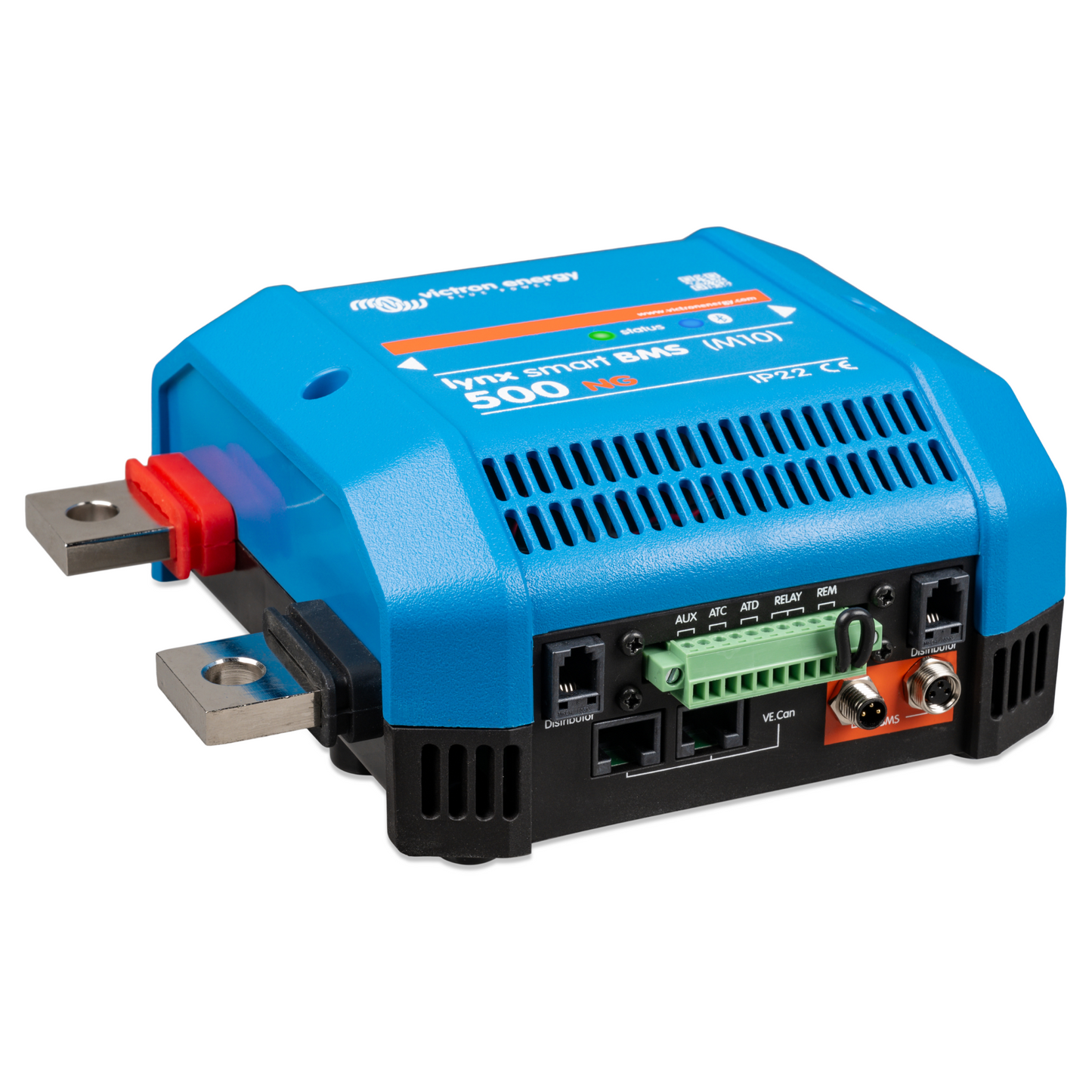

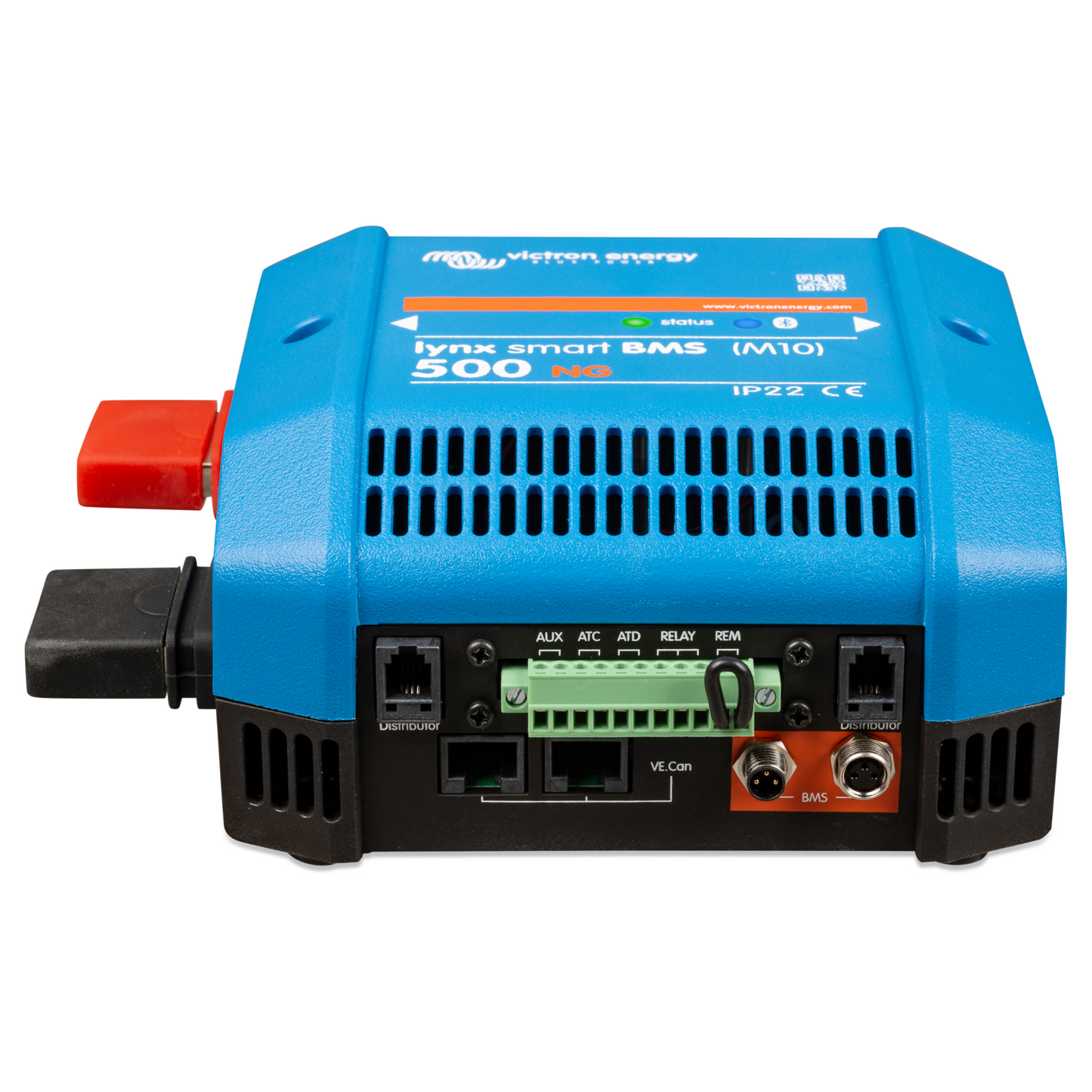

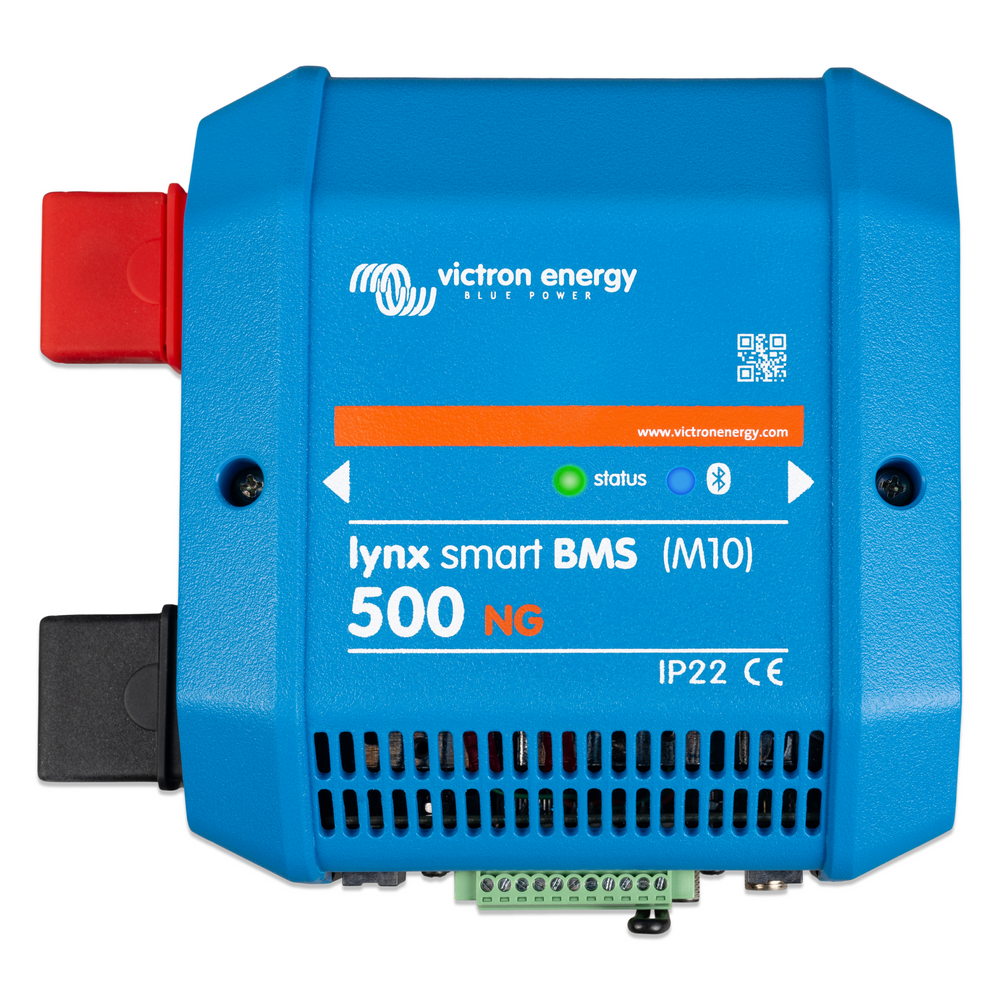

Lynx Smart BMS 500 NG (M10)

The Victron Lynx Smart BMS 500 NG (M10) is a robust and intelligent battery management system specifically designed for Victron Lithium NG LiFePO4 batteries. It supports 12.8V, 25.6V, and 51.2V batteries and enables the creation of flexible battery banks with system voltages of 12V, 24V, or 48V. Up to 50 batteries can be connected in a 12V/24V configuration (192–384 kWh), or 25 batteries at 48V (128 kWh). For larger energy storage needs, multiple BMS units can be paralleled to increase capacity and provide system redundancy.

As the most feature-rich BMS option for Victron's Lithium NG line, it integrates seamlessly with M10 Lynx modules, GX devices, and VictronConnect, offering comprehensive monitoring and control.

Key Features:

• Has a 500A built-in contactor that acts as a secondary safety mechanism in case primary controls fail.
• Can be used as a remotely controlled main system switch.
• Bluetooth connectivity via VictronConnect App
• VE.Can communication with GX devices like Cerbo GX or Ekrano GX
• Live data on voltage, current, cell temperature, SoC, and system status
• Enables automatic control of Victron chargers, inverters, and DC-DC converters
• Allow-to-charge/Allow-to-discharge terminals can control third-party chargers or loads with remote on/off inputs
