Victron

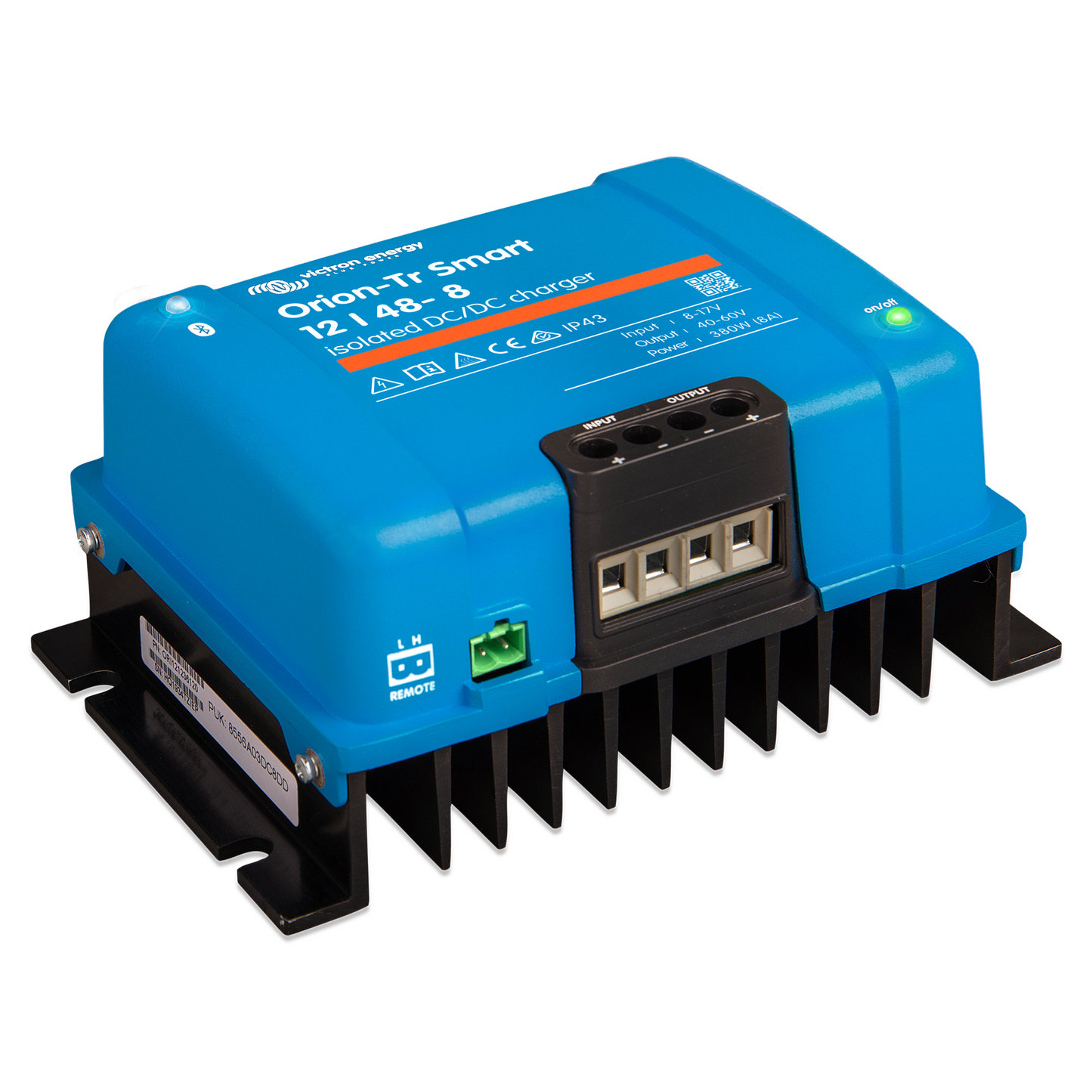

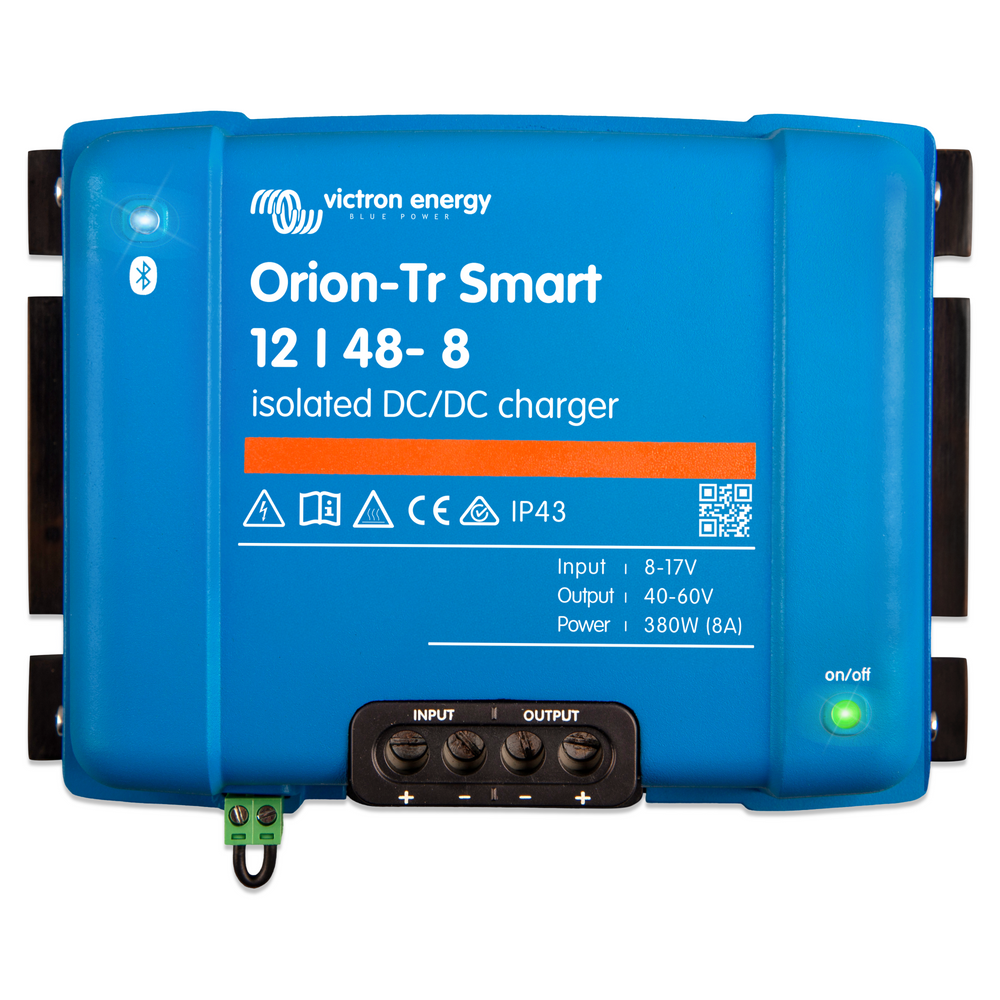

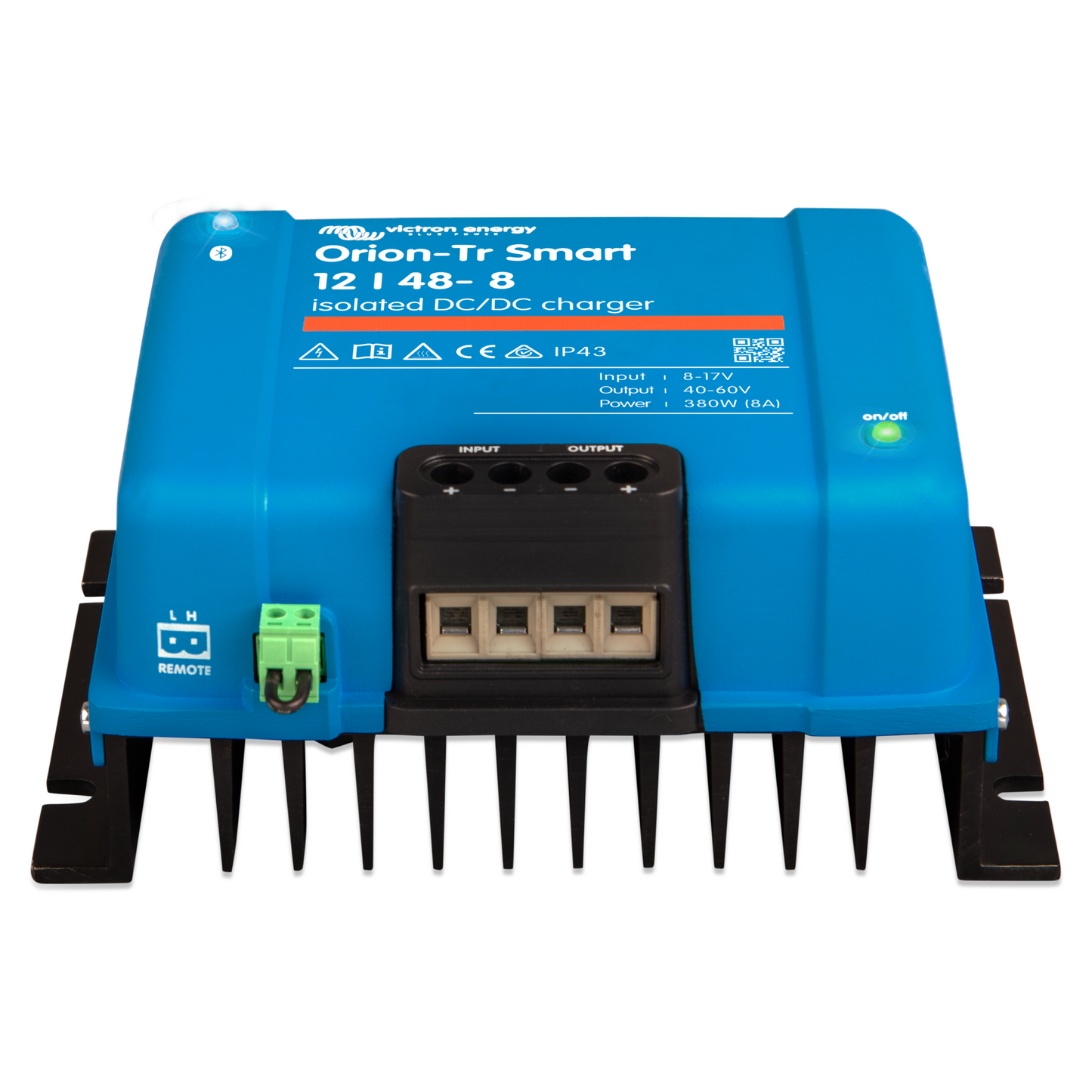

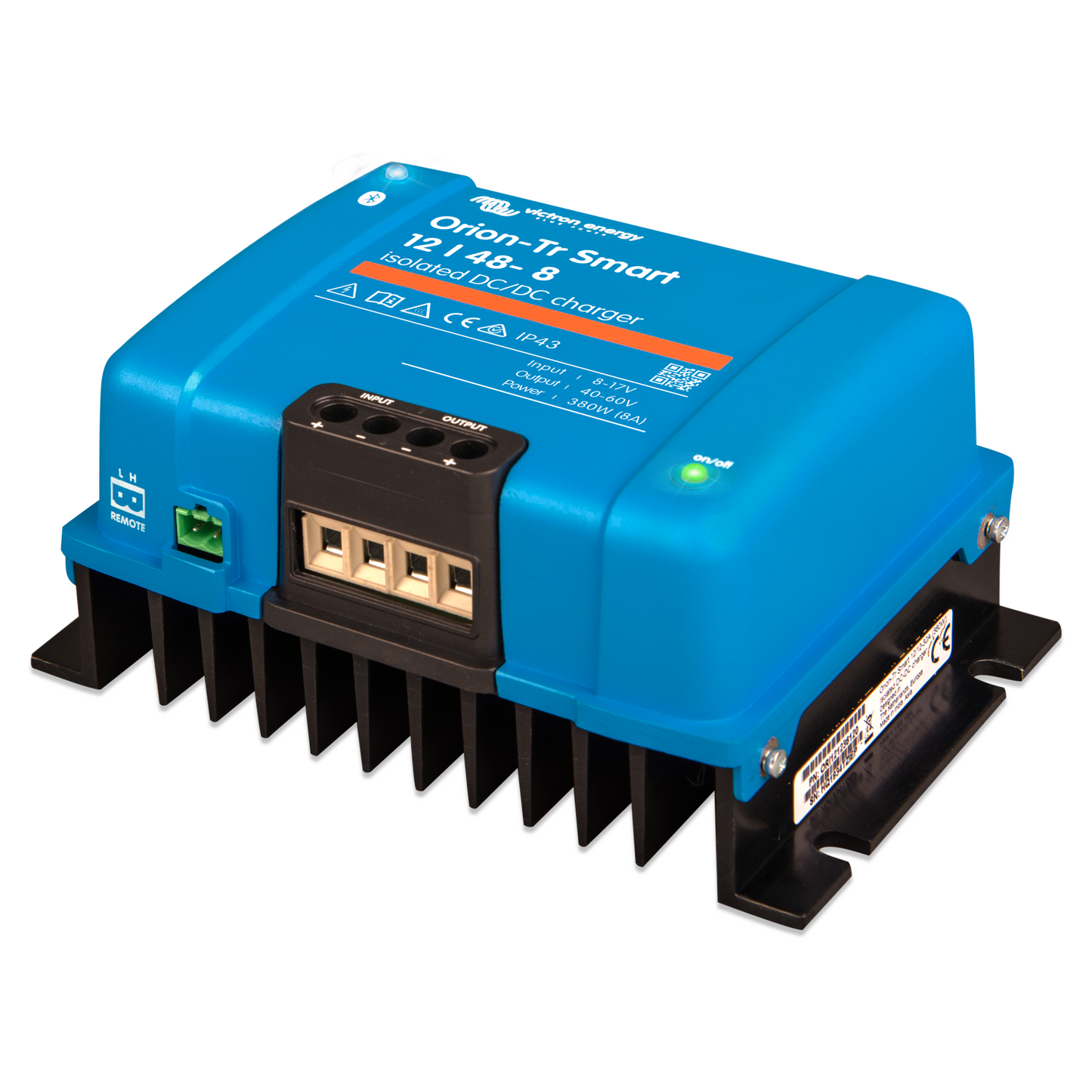

Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger

ORI124838120
$243.95

Low Inventory  - 1 left

The Victron Energy Orion-Tr Smart 12/48-8A Isolated DC-DC Charger provides controlled charging from a 12V electrical system to a 48V service battery bank. It is designed for vehicles, boats, and other dual-battery systems where a starter battery or alternator supplies power to a separate 48V battery system.

Built-in Bluetooth allows the charger to be monitored and configured through the VictronConnect app. Its isolated design keeps the input and output grounds separate, while automatic engine-running detection helps prevent the charger from draining the starter battery when the engine is off.

Key Features:

  • 12V-to-48V DC-DC Charging: Converts power from a 12V source into controlled charging for a 48V service battery bank.
  • 8A Charging Output: Provides up to 8A of continuous output at the nominal 48V output voltage and temperatures up to 104°F (40°C).
  • Galvanically Isolated Design: Keeps the input and output electrically separated, allowing each side to use a different chassis ground.
  • Adaptive Three-Stage Charging: Uses bulk, absorption, and float stages to charge and maintain the connected battery properly.
  • Lead-Acid and Lithium Compatibility: Configurable charging settings support both lead-acid and lithium battery systems.
  • Built-In Bluetooth: Use the VictronConnect app to configure charging settings and monitor operating information from a compatible phone or tablet.
  • Engine-Running Detection: Allows the charger to operate automatically when the engine is running and helps protect the starter battery when the engine is off.
  • Remote On/Off: Can be controlled using a remote switch or an external engine-running signal.
  • Power-Supply Mode: Can also provide a stable and adjustable DC output for compatible equipment.
  • Parallel Operation: Multiple units can be connected in parallel when additional output current is required.
  • High-Temperature Protection: Automatically reduces output when necessary to protect the charger at elevated temperatures.

The Orion-Tr Smart 12/48-8A is a practical solution for charging a 48V auxiliary battery bank from a 12V alternator or starter-battery system. It is well suited for recreational vehicles, work vehicles, boats, and mobile power installations that use separate 12V and 48V electrical systems.

Technical Specifications:

Input system voltage 12V DC
Input voltage range 8–17V DC
Undervoltage shutdown 7V DC
Undervoltage restart 7.5V DC
Nominal output voltage 48.2V DC
Adjustable output range 40–60V DC
Continuous output current 8A at nominal output voltage and 104°F (40°C)
Maximum output current 15A for up to 10 seconds at nominal voltage minus 20%
Charging stages Bulk, absorption, and float
Compatible battery types Lead-acid and lithium
Efficiency 89%
Galvanic isolation 200V DC between input, output, and enclosure
Bluetooth connectivity Built-in; compatible with VictronConnect
Remote on/off Yes
DC connections Screw terminals, up to AWG 6 (16mm²)
Protection rating IP43 when installed with the screw terminals facing downward
Operating temperature -4°F to 131°F (-20°C to 55°C)
Dimensions 5.1 × 7.3 × 3.2in (130 × 186 × 80mm)
Weight 4lb (1.8kg)
